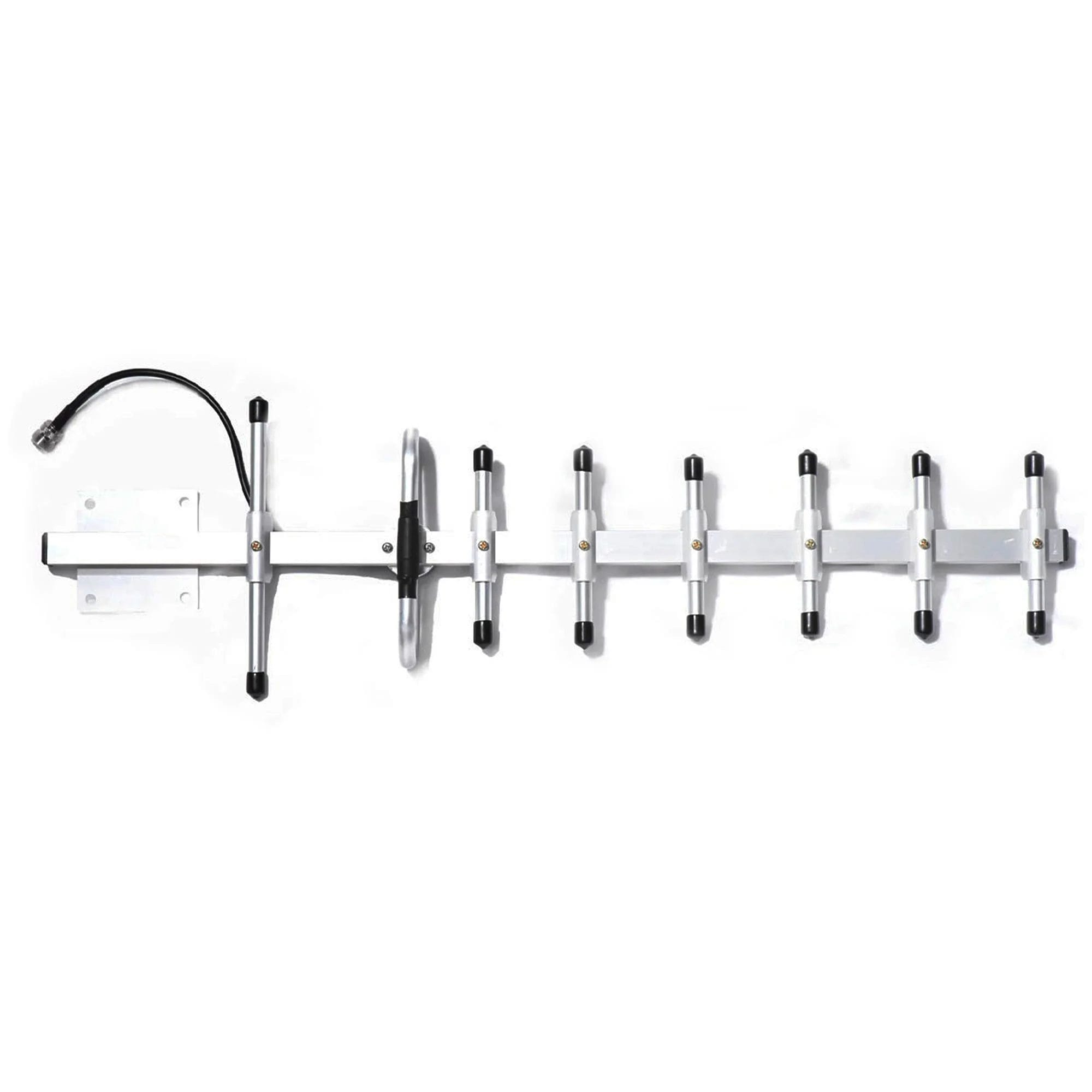

YAGI 2x Antenna

YAGI 2x Antenna for Navis Anemometers – Bigfoot Crane
Outdoor antenna for Navis wireless systems – Bigfoot Crane
YAGI 2x Antenna for Navis Anemometers – Bigfoot Crane
Outdoor antenna for Navis wireless systems – Bigfoot Crane

YAGI 2x Antenna

Vendor: Navis

SKU: Yagi 2X

Availability: In Stock

Shop Now

Shop Online
Features:
  • Extends wireless range up to 3–5 km for Navis anemometers.
  • Durable aluminum tube construction.
  • Built for harsh outdoor use: waterproof, UV resistant, wind-rated to 215 km/hr (134 mph).
  • Includes pole clamp mount (fits 35–50 mm diameter poles).

Specifications / Instructions:

Extend your range up to 3km to 5km with the YAGI 2x Antenna for Navis Anemometers. Lightweight and connects directly to your Navis anemometer display, replacing the standard antenna.

  • 8-element tuned yagi antenna from aluminum tube: 12.5dBi gain with very low SWR @ 868MHz (less than 1.5)
  • Beamwidth – 45° (horizontal) / 41° (vertical), horizontally polarized
  • Impedance – 50Ω @ 868MHz. When measured with a DC multimeter, it is normal for this antenna to appear short circuit.
  • Weight – 1.3 lbs (600 g) including mounting kit / Length – 31.5″ (800 mm)
  • N-female connector on 11.4″ (290mm) pigtail
  • Designed for use with FLARM, OGN, LoRa and other 868MHz applications
This range of directional antennas is designed for harsh outdoor use.
  • Rated to wind speeds up to 134mph (196 fps) or 215km/hr (60m/s).
  • Operating temperature range -40°F to 140°F (-40°C to 60°C).
  • UV resistant and waterproof.
  • Pole clamp included. Suits 1.37″ (35mm) to 1.97″ (50mm) pole diameter.
  • Extends wireless range up to 3–5 km for Navis anemometers.
  • Durable aluminum tube construction.
  • Built for harsh outdoor use: waterproof, UV resistant, wind-rated to 215 km/hr (134 mph).
  • Includes pole clamp mount (fits 35–50 mm diameter poles).
