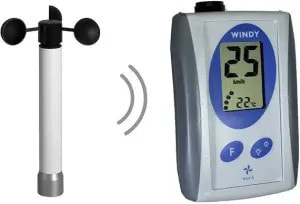

WINDY™ WR3-B Wireless Anemometer

Know Windspeed Instantly

There are many anemometer uses possible today including remote wind measurement. Anemometers have a broad range of applications, and they are necessary for safe operation in many heavy industries and outdoor settings. This article gives you an overview of 5 anemometer uses for outdoor applications where remote wind monitoring greatly enhances safety. Especially if you use it as part of an integral weather monitoring solution.

Weather forecasts provide a general idea of what to expect. But, they are not updated to reflect live conditions across multiple project sites, and thus they are not a reliable tool for decision-making.

Using a precise and rugged remote wind monitoring system can provide live data for project decisions, which can be logged to justify downtime with the client. In addition, separate units across various construction sites can be connected to a single network, feeding data to a mobile application 24/7.

Shop Online
Features:
  • Range up to 400 m/1,321 feet
  • Data refresh every 2 seconds
  • 1 year minimum battery life
  • Wind tunnel calibrated sensors with precision stainless steel ball bearing
  • Programmable wind speed alarm
  • Replaceable anemometer cups
Models:

Specifications / Instructions:

  • Range up to 400 m/1,321 feet
  • Data refresh every 2 seconds
  • 1 year minimum battery life
  • Wind tunnel calibrated sensors with precision stainless steel ball bearing
  • Programmable wind speed alarm
  • Replaceable anemometer cups
  • Current wind speed
  • Maximum wind speed
  • Average wind speed (selectable averaging)
  • All standard units (knots, m/s, mph, km/h)
  • Beaufort bar graph
  • Temperature in degrees Celsius or Fahrenheit
  • Wind chill – subjective ambient temperature dependent on wind speed
  • Sound alarm at exceeded wind speed

Historical Data

  1. Place the Anemometer anywhere you need
  2. Turn on your display unit (your anemometer and display are already set up to talk to each other)
  3. Set your desired safety parameters

SpecWINDY B/S (Windspeed Sensor)
Measurement Range0,6 – 50,0 m/s
Measurement Range: Temp-30 °C – +60 °C
Units of Measurementm/s, km/h, knots, mph, Bft
Units of Measurement: Temp°C, °F
Resolution: Wind Speed0,1 unit (under 9,9), 1 unit (above 10)
Resolution: Temp1 °C
Accuracy: Wind Speed+/- 3%
Accuracy: Temp+/- 1°C
Averaging Period, Selectable2s, 10s, 30s, 2min, 5min
Display UpdatingEvery 2 seconds
Data TransmissionEvery 2 seconds
Transmission Frequency868 MHz
Battery: Sensor1 x 3,6 V AA Lithium battery, replaceable (included)
Battery Life: SensorUp to 4 years
Battery Life: Display UnitUp to 5000 hours
Battery Life with Backlighting300 hours
Dimensions: SensorHeight 210 mm, overall diameter up to cup 120 mm
Material: SensorPolyamide cups, aluminum base
Dimensions: Display Unit94 x 63 x 28 mm
MountingThe sensor mounts on a pipe with 20 mm diameter
  • Lift
  • Mobile
  • Tower
  • Bridge
  • Wherever wind speed and/or wind chill alarm is needed

Click here to download the brochure

  • Self-levelling bracket with optional magnetic mounting kit
  • Waterproof, impact resistant carrying case for storage
